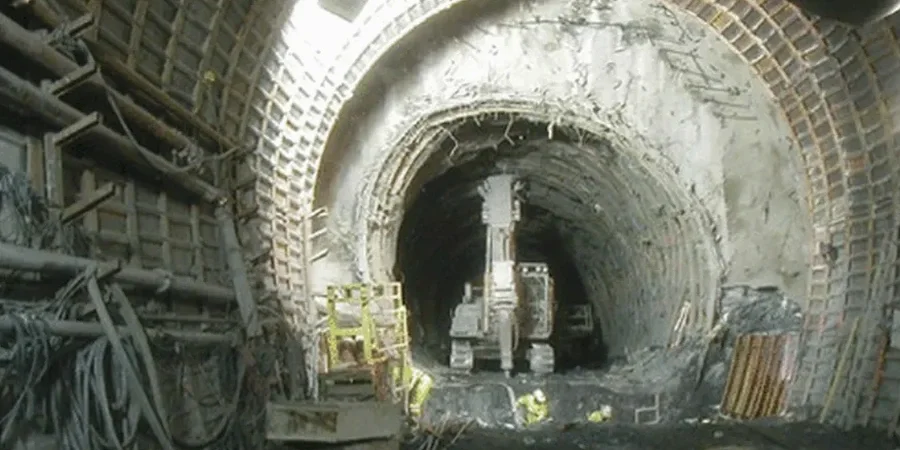

Oshawa's transformation from a modest 1800s port village into a major automotive and logistics hub is etched into its underground landscape. The city sits atop a complex stratigraphy of glacial Lake Iroquois deposits—interbedded silty clays and dense tills—that challenge any tunnel boring machine. When planning infrastructure beneath the 403 or through the older downtown core, ignoring the legacy of post-glacial soft sediments isn't just risky; it's a guaranteed recipe for face instability and surface settlement. Before a single cutter head spins, a careful geotechnical analysis for soft soil tunnels defines the boundary between a controlled excavation and a costly failure. Our team integrates field data from cone penetration testing with lab-derived shear strength parameters, mapping how much time you have before the silty clay begins to creep. The work isn't generic; it reflects Oshawa's specific depositional history, where the depth to the hard till can shift dramatically across a single block.
In Oshawa’s laminated silts, a 5% misinterpretation of the pore pressure ratio can reduce face stability time from four hours to less than ninety minutes.
Our approach and scope
Local ground factors
We bring a track-mounted CPT rig into Oshawa’s tighter industrial lots—the kind that can push 20-ton cone rods through stiff upper crust without needing a massive drill platform that tears up the asphalt. The real risk in Oshawa’s soft ground isn’t just the low blow counts; it’s the sensitivity of the fabric. Disturb the structure of these glaciolacustrine silts with an auger, and you’ll measure a strength 40% lower than what’s actually holding the crown steady. That’s why we insist on a hybrid program: minimal-disturbance Shelby tube sampling paired with in-situ dissipation tests. A tunnel face in remolded silt behaves almost like a viscous fluid, flowing around the shield if the face pressure drops. We quantify that threshold so the operator knows the exact kPa needed to stop the ground from squeezing in. Without this site-specific analysis, you’re not tunneling; you’re mining a slurry.
Regulatory framework
Ontario Building Code (OBC) Section 4.1, CSA A23.3: Design of Concrete Structures, NBCC 2020 - National Building Code of Canada, ASTM D4767 - Consolidated Undrained Triaxial Compression Test for Cohesive Soils, ASTM D5778 - Standard Test Method for Electronic Friction Cone and Piezocone Penetration Testing of Soils
Other technical services
Piezocone Sounding & Pore Pressure Profiling
We execute CPTu soundings along the tunnel alignment to map the stratigraphy without disturbing the sensitive clay matrix. The dissipation tests tell us exactly how fast the excess pore pressure bleeds off, which directly governs the settlement trough width you’ll see at street level in neighborhoods like Vanier.
Advanced Triaxial Testing (CIU/CAU)
We run multi-stage triaxial tests on Shelby tube samples extracted from the tunnel horizon. By reconsolidating the specimens to the in-situ stress state, we generate the Mohr-Coulomb parameters needed to calibrate the finite element models, ensuring the tunnel lining design isn’t overly conservative or dangerously thin.
Settlement & Face Stability Analysis
Using the derived stiffness degradation curves, we model the volume loss at the tunnel face. This isn’t a generic empirical estimate; it’s based on Oshawa’s specific liquidity index, allowing us to predict whether the ground movement will affect the shallow utilities running beneath King Street.
Typical parameters
Common questions
What is the typical cost range for a geotechnical analysis for a soft ground tunnel in Oshawa?
In Oshawa, a comprehensive geotechnical analysis for a soft soil tunnel typically falls between CA$5,070 and CA$20,170. The final fee depends heavily on the linear footage of the alignment, the depth to the tunnel crown, and the number of in-situ tests required. A shorter pedestrian tunnel with limited access will be on the lower end, while an extensive sewer interceptor project requiring dozens of CPT soundings and triaxial lab suites will approach the upper range. The scope is always tailored to the specific ground conditions we encounter.
How do you handle the high groundwater table common in Oshawa’s glacial deposits?
High groundwater is the primary driver of face instability in Oshawa’s silty clays. Our approach relies on piezocone dissipation tests to measure the in-situ hydraulic conductivity directly at the tunnel depth. We don’t rely solely on falling head tests in boreholes, which can miss thin silt seams that act as water conduits. By mapping the exact pore pressure profile, we provide the TBM operator with the critical face pressure required to balance the hydrostatic head, preventing blowouts or excessive dewatering that could trigger settlement in the urban grid.
Can you work within the tight access constraints of downtown Oshawa?
Absolutely. We’ve designed our field programs specifically for the limited access typical of Oshawa’s older industrial zones and downtown corridors. Our track-mounted CPT rigs and portable drilling equipment can maneuver through narrow laneways without requiring large laydown areas. The testing plan is always phased to minimize traffic disruption while still capturing the geological variability needed for a safe tunnel design.
